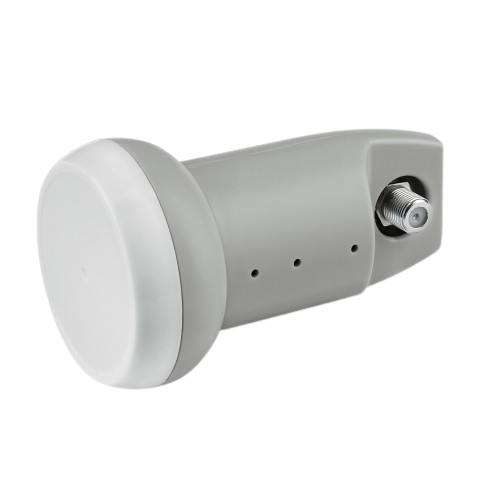

Description

Item ID
EAN Number: 5702663044869

Gain
Conversion gain (max.): 76 dB
Conversion gain (typ.): 58 dB

Inputs
LO frequency high band: 10,6 GHz
LO frequency low band: 9,75 GHz
Input frequency high band: 11,7 – 12,75 GHz
Input frequency low band: 10,.7 – 11,7 GHz

Outputs
Output frequency high band: 1100 – 2150 GHz
Output frequency low band: 950 – 1950 GHz

Electrical data
DC Operating voltage: 10,5 à 21 V/DC

Power supply
DC current consumption (typ.): 190 mA

Temperature / humidity
Operating temperature range: -40 – 60 °C

Packaging
Packaging Volume: 0,000 m3
Net Weight: 0,240 kg
Tara Weight: 0,000 kg
Total Weight: 0,240 kg
Packaging Height: 0,000 m
Packaging Width: 0,000 m
Packaging Depth: 0,000 m
