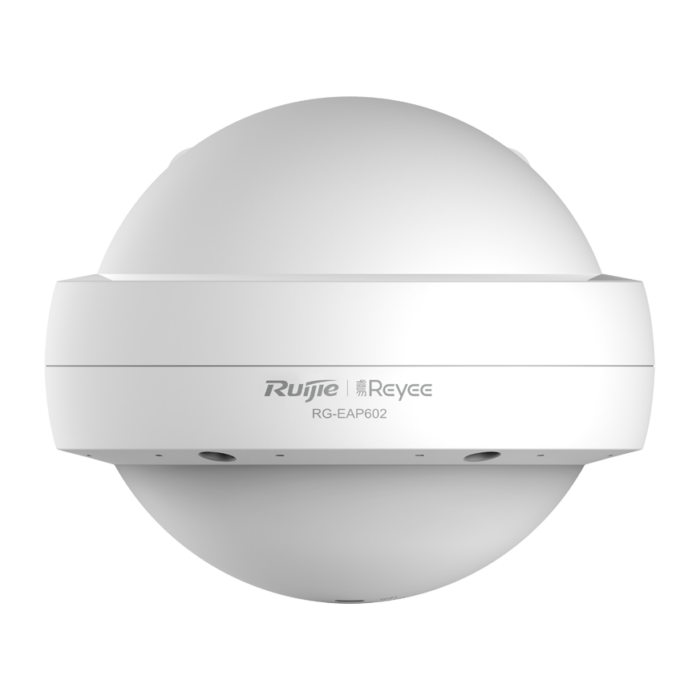

OUTDOOR ACCESS POINT RUIJIE RG-EAP602 AC1200

Ruijie Reyee Series RG-EAP602 is a high-power outdoor omnidirectional dual-band wireless access point supporting 802.11b/g/n/ac, which is designed for villages, villas, parks, scenic spots, plazas, etc. With concurrent 2.4GHz and 5GHz, the AP supports dual-band dual-stream MIMO technology, which can provide 300Mbps at 2.4GHz, 867Mbps at 5GHz and up to 1167Mbps per AP. The built-in omnidirectional high-gain antennas provide excellent coverage for the users.

RG-EAP602 supports Self-organizing network features, which realizes auto-discovery, auto-networking and auto-configuration of devices without the need for controllers or Internet access. With the mobile app, users can quickly complete the device deployment and configuration, remote management, operation and maintenance of the entire network, which greatly reduces the investment of equipment cost, labor cost and time cost in the process of wireless network construction. Users can perform comprehensive local management or remote management of the equipment in the entire network via the mobile app, web management, Ruijie Cloud platform, Router, etc. Users can also share the network to third party for collaborative management, thereby offering a simpler, easier to use, more secure and convenient enterprise network.

Highlight:

  • 802.11ac Wave2 technology
  • 300m coverage radius
  • Auto-provisioning via Self-Organizing Network:Supports Ruijie’s self-developed smart networking feature, which breaks through the product limitations and realizes auto-discovery, auto-networking and auto-configuration between routers, switches, and wireless APs without the need for controllers or Internet access;
  • Lifetime free Ruijie Cloud management: Remote fault alarm, one-click optimizing and maintenance on Ruijie Cloud App;
  • Stable wireless service under harsh environment: Surge Protection 6KV | IP Rating IP68 | Operating temperature: -30°C~65°C
  • Industrial Design

Description

Model
RG-EAP602
Radio

2.4GHz & 5GHz dual-band dual-stream

Protocol

2.4GHz: 802.11 b/g/n;5GHz: 802.11a/b/g/n/ac

Spatial Streams

2.4GHz: 2 Spatial Streams, 2×2 MIMO
5GHz: 2 Spatial Streams, 2×2 MIMO

Max Throughput

2.4GHz: 300Mbps

5GHz: 867Mbps

Up to 1167Mbps per AP

Transmit Power

≤500mw(27dBm,RF transmit power only)

Dimensions

200mm×220mm×166mm (excluding mounting kits)

Weight

1kg (excluding mounting kits)

Service Ports

2 10/100/1000Mbps Ethernet ports(one of which supports 802.3af/at PoE)

1 reset button

Reset

1 DC 12V power socket

LED Indicator

Wi-Fi indicator, warning indicator, LAN1 connection indicator, LAN2 connection indicator

Power Supply

802.3af / 802.3at

DC 12V 1.5A

Power Consumption

<12.95W

Built-in Antennas

Built-in omnidirectional antennas (basic gain 3dBi)

Coverage Radius

Open and unobstructed direction: 2.4G 100m,5G 300m

(the actual coverage distance may vary according to different obstruction situations and different performances of wireless terminals)

Surge Protection

6000V

IP Rating

Above IP68

Environment

Operating temperature: -30°C~65°C

Storage temperature: -40°C~85°C

Operating humidity: 0%~100% (non-condensing)

Storage humidity: 0%~100% (non-condensing)

MTBF

>250000H

WLAN

Maximum number of clients: 164

Recommended number of clients: 96

Up to 8 SSIDs

Support SSID hiding

Configuring the authentication mode, encryption mechanism, and VLAN attributes for each SSID

SSID-based and radio-based STA limit

Support Layer 2 user isolation

Security

Support PSK authentication

Support static blacklist and whitelist

Support WPA (TKIP), WPA2 (AES), and WPA-PSK data encryption

Routing

Support static IP address and DHCP

Management and Maintenance

Support local or remote management with app

Support local management with web

Support remote management with Ruijie Cloud platform

Platform Management Features

Automatic RF adjustment via the platform

Unified configuration via the platform

Unified monitoring via the platform
